PVDF vs Polyester for Architectural Coating

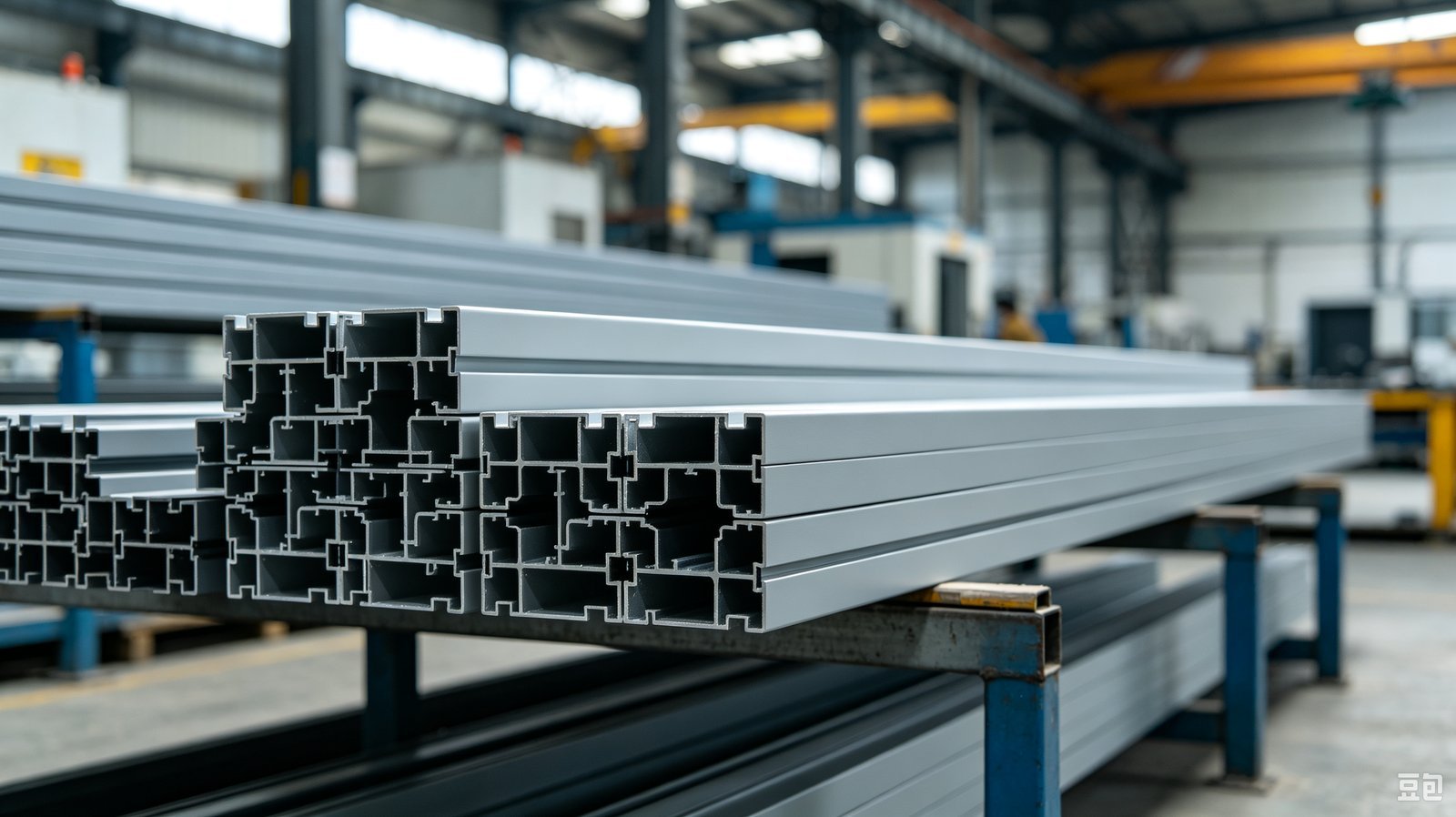

For architectural aluminum – curtain walls, window frames, cladding – the coating is chosen once and expected to last decades. Two systems dominate the discussion: PVDF fluorocarbon and super-durable polyester. Both are excellent; they serve different budgets and warranty requirements. Here is how to choose.
Key Takeaways
- PVDF fluorocarbon gives the best long-term color and gloss retention and backs 20-year warranties.
- Super-durable polyester typically carries 10-15 year warranties and costs less per square metre.
- Both are full powder systems; the gap widens on dark colors and high-exposure orientations.
- Standard polyester is not appropriate for facades, whichever price is quoted.
What Each System Is
PVDF fluorocarbon powder is based on a polyvinylidene fluoride resin, the same chemistry used in the highest-performing liquid architectural coatings. Super-durable polyester uses a polyester resin with HAA or TGIC chemistry engineered for long outdoor life. Both are applied as full powder systems in one or two coats.
Weathering Performance
- PVDF offers the best long-term color and gloss retention of any powder system – the standard for 20-year warranties
- Super-durable polyester typically carries 10-15 year warranties with excellent but slightly lower retention
- Both outperform standard polyester, which is not appropriate for facades
- Dark colors and high-exposure orientations separate the two fastest
The Cost Trade-off
PVDF costs more per square meter because the resin is more expensive and the application tolerances are tighter. If the building owner wants a 20+ year warranty on color and gloss – common for prestige projects – PVDF is the answer. For strong 10-15 year performance at a better price, super-durable polyester is the pragmatic choice.
When PVDF Pays for Itself
- Curtain walls and cladding that will never be repainted easily
- Dark or high-contrast colors where fading is most visible
- Coastal and high-UV locations
- Projects where the specification already demands AAMA 2605-level performance
Specifying for Curtain Walls
- State the film thickness as a minimum, not an average, measured per AAMA standards
- Require QUV and salt spray data for the exact color being supplied
- Approve a production sample panel and keep it as the reference
- Ask for the coating supplier warranty in writing with the project name
Frequently Asked Questions
Should I specify PVDF or polyester for an architectural facade?
PVDF where the warranty target is 20 years or colour retention on dark or high-exposure facades matters most. Super-durable polyester covers most projects at 10-15 years and a lower cost per square metre.
Why does architectural coating cost more than industrial powder?
Architectural systems use higher-grade resins, tighter colour and gloss tolerances and stricter application controls, all of which raise the cost per square metre while extending the warranty.
Can standard polyester be used outdoors?
Only for low-exposure parts. Facades, especially dark colours, need super-durable or PVDF resin because standard polyester chalking and colour shift become visible quickly.
